Fits after modification — plan for sheet-metal work

Your N431226G100 has a replacement — with one honest catch.

Same 12,000 BTU/hr, same 230V. Plan on a minor cutout trim in the field to take the AT12RNWXX — no adapter plate needed.

Also sold as McLean · Hoffman · Pentair · nVent — N431226G100 — 11,000 BTU/hr · 230V · NEMA 4 · R-134A

Yours

N431226G100

43.0″ × 11.5″ × 14.0″ · 127 lbs

Modified fit

Ours, in production

VoltAire AT12RNWXX

43.99″ H × 12.30″ D × 16.39″ W · 96.9 lbs · 24% lighter

Fits After Modification Fit details ↓

You'll order: 1× AT12RNWXX — $4,548. Plus a minor cutout trim in the field.

nVent published distributor price $10,805 → yours $4,548 $6,257 stays in your budget

Your Replacement

AT12RNWXX

Fits After Modification

12,000 BTU/hr • 230V • NEMA 4

Availability Built to Order 4-6 weeks — made in Orlando, FL

Includes Unit only Minor cutout trim in the field 30-day price lock · no-obligation quote

Built Orlando, FL — UL/cUL Listed

Need It Faster?

The AT12RNW10 is on the shelf right now — same 12,000 BTU/hr, same 230V, with a 1,000W electric heater included. It ships next business day instead of 4-6 weeks for $123 more.

Take the in-stock AT12RNW10 $4,671

nVent N431226G100 — published distributor price

$10,805 $6,257 stays in your budget (58% less)

Your order total

$4,548

Unit price. Minor cutout trim done in the field.

Start My Order

Backed by VoltAire’s 12-month warranty (PDF) · UL 484 · Made in Orlando, FL 🇺🇸

RS Online published price, Jul 2026. nVent sells through distributors and doesn't publish list prices — distributor quotes vary.

Home
/
Replacements
/
N431226G100

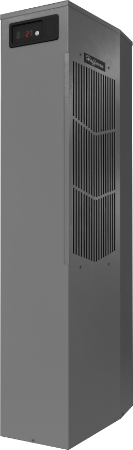

Existing Unit

N431226G100

11,000 BTU/hr (3223) • 230V

Brand nVent

Series N4312

Capacity 11,000 BTU/hr (3223)

Voltage 230V

Heat No

Finish W

Where distributors publish pricing for the OEM equivalent, VoltAire runs 48% less on average (21-70% by model).

VoltAire Replacement In Production

AT12RNWXX

12,000 BTU/hr • 230V

Brand VoltAire

Series AT Telecom Series

Capacity 12,000 BTU/hr +9% cooling

Voltage 230V

Heat No

Finish Hentzen Off White (NEMA 4)

What You'll Order

1× AT12RNWXX $4,548

Popular options

Heater Cabinet Controller

Condenser intake filter (15×15 Mesh Filter) +$202

Screens sawdust, filings & insects off the condenser coil — not an enclosure air filter; cabinet air stays sealed.

Need a different voltage or capacity? Configure your AT08 / AT10 / AT12 →

Built to Order • 4-6 weeks

Details

Fit Details

Fits After Modification

Same cooling capacity and voltage as the N431226G100 — generally considered a match, just not bolt-for-bolt. The cabinet cutout differs by a small amount, so a quick trim with a sawzall (or similar tool) gets the VoltAire AT12RNWXX into place. Minor field work, no adapter plate required — routine for any installer. Call (844) 925-5668 if you'd like us to walk through the trim before you order.

Unit dimensions — what the tape measure will tell you

	N431226G100	AT12RNWXX	Δ
Height	43.0″	43.99″ H	+1.0″
Width	11.5″	16.39″ W	+4.9″
Depth	14.0″	12.30″ D	-1.7″

Existing nVent unit VoltAire replacement

N4312 to AT12 Opening mismatch · provisional cuts shown

The red areas show where the openings differ; no adapter plate is available for this pairing. The red areas come from the manufacturer's spec sheet and must be confirmed against your actual unit before cutting.

Existing nVent AC outline Existing nVent opening New VoltAire unit outline VoltAire opening Existing cabinet metal that may need removal — verify first

The red hatching shows where the VoltAire openings extend into cabinet metal; confirm the installation plan with VoltAire before cutting.

Step 1 of 4 Start with the existing N4312 cabinet pattern.

The two manufacturer drawings are centered on each other for visual comparison only, because a shared mounting reference between the two units has not been verified. Verify every opening against your actual unit before any cutting or mounting. This comparison uses the standard AC AT12 footprint; the 48 VDC AT12RB has different dimensions. This comparison is a visual guide, not a cutting or drilling template. Openings can vary with voltage and production run — verify against your actual unit before any cutting or mounting, and follow the manufacturer's installation template.

Not sure? Talk to a fit specialist — (844) 925-5668.

N431226G100 Replacement — Common Questions

What replaces the McLean N431226G100?

The VoltAire AT12RNWXX — 12,000 BTU/hr at 230V, NEMA 4, UL/cUL Listed and built in Orlando, FL. Fits after a minor cutout trim — no adapter needed.

Will the VoltAire AT12RNWXX fit my N431226G100 cutout?

After a minor cutout trim in the field — no adapter plate needed.

How much does a N431226G100 replacement cost?

The VoltAire AT12RNWXX is $4,548. For comparison, the published distributor price for the nVent N431226G100 is $10,805 (RS Online, Jul 2026). Volume discounts start at 4 units, and every quote locks pricing for 30 days with no obligation.

How fast can I get a replacement for my N431226G100?

Configured builds ship in 4–6 weeks from Orlando, FL. In-stock variants are sometimes on the shelf — call (844) 925-5668 and we'll find the fastest path for your spec.

Is the VoltAire AT12RNWXX an original McLean part?

No. VoltAire is an independent brand — an engineered replacement, not an OEM part. VoltAire Cooling is not affiliated with McLean, Hoffman, Pentair, or nVent. Units are UL/cUL Listed (UL 484) and manufactured in Orlando, Florida.

Why Switch to VoltAire?

Engineered Replacement

Matched voltage and NEMA 4 protection, with the capacity difference stated in plain numbers above — with a clear fit path for your enclosure: direct, adapter plate, or template-guided modification. Built to replace McLean, Hoffman, Pentair, and nVent.

Built & Tested in the USA

Manufactured in Orlando, FL with a 5-point pressure and leak test. In-stock models ship fast from East Coast (VA) and Rocky Mountain (ID) warehouses; built-to-order configurations ship in 4-6 weeks.

48% Below Published Online Pricing, on Average

No distribution markup. Transparent pricing. Volume discounts at 4+ and 7+ units. Integrator pricing available for panel shops.

Need Heat, Stainless, 230V, or Remote Monitoring?

The AT08 is available with electric heat, stainless steel NEMA 4X, 48VDC, and factory ethernet controllers with Lead-Lag, SNMP, and BACnet.
