Find Your Replacement

Discontinued — nVent no longer sells it at any price

Your T430616G100 has two ways forward.

Keep your capacity with an adapter plate, or step up one size for a true drop-in — both paths are priced below.

Also sold as McLean · Hoffman · Pentair · nVent — T430616G100 — 6,680 BTU/hr · 115V · NEMA 4 · R-134A

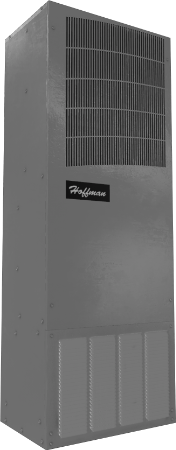

T430616G100 — existing unit

Yours

T430616G100

43.0″ × 15.8″ × 10.9″ · 125 lbs

Two paths
VoltAire AT06RMWXX — replacement for T430616G100

Ours, in production

VoltAire AT06RMWXX

29.53″ H × 12.90″ D × 17.40″ W · 74.7 lbs · 40% lighter

Adapter Fit Drop-In Fit Fit details ↓

Same capacity with an adapter, or a true drop-in if you upsize — compare both options below.

Verified fit path — so you're not the one explaining a wrong-fit order.

No price comparison to make — nVent no longer sells this unit at any price. The real cost to weigh is a planned swap now versus an emergency swap after it quits.

Your In-Production Replacement

AT06RMWXX

Two Ways to Fit

6,000 BTU/hr • 115V • NEMA 4

Availability Built to Order 4-6 weeks — made in Orlando, FL
Includes Unit + adapter plate 30-day price lock · no-obligation quote
Built Orlando, FL — UL/cUL Listed

Your order total

$3,811

Adapter plate included in this price.

Start My Order

Backed by VoltAire’s 12-month warranty (PDF) · UL 484 · Made in Orlando, FL 🇺🇸

Existing Unit Discontinued

T430616G100

6,680 BTU/hr (1958 Watt) • 115V
T430616G100
Brand nVent
Series T4306
Capacity 6,680 BTU/hr (1958 Watt)
Voltage 115V
Heat No
Finish W

Where distributors publish pricing for the OEM equivalent, VoltAire runs 48% less on average (21-70% by model).

VoltAire Replacement In Production
AT06RMWXX
6,000 BTU/hr • 115V
VoltAire AT06RMWXX
Brand VoltAire
Series AT Telecom Series
Capacity 6,000 BTU/hr capacity step-down, about −10%
Voltage 115V
Heat No
Finish Hentzen Off White (NEMA 4)

What You'll Order

1× AT06RMWXX $3,406
1× Adapter / Transition Plate $405
Order total $3,811

Popular options

Screens sawdust, filings & insects off the condenser coil — not an enclosure air filter; cabinet air stays sealed.

Need heat, stainless steel, or a different voltage? Configure your AT04 / AT06 →

Built to Order • 4-6 weeks

Details

Fit Details

Two Ways to Fit

Pick your path in the order panel above: same capacity with the VoltAire AT06RMWXX plus an adapter plate ($405), or the AT08RMWXX drop-in with more cooling and no adapter. Either way, one click orders everything needed. Back to the chooser ↑

Unit dimensions — what the tape measure will tell you

T430616G100 AT06RMWXX Δ
Height 43.0″ 29.53″ H -13.5″
Width 15.8″ 17.40″ W +1.6″
Depth 10.9″ 12.90″ D +2.0″

Two ways to fit — pick one

Not sure? Same capacity is the safe like-for-like swap; upsize if you've been running hot or hate adapter plates.

T4306 to AT06 Adapter plate + provisional cabinet cuts
Plan on the adapter plate plus some cabinet cutting — the red areas show where the new openings reach beyond the existing cutout. The red areas come from the manufacturer's spec sheet and must be confirmed against your actual unit before cutting. Expect two cuts on this pairing.
Cabinet cooler replacement comparison Existing nVent cabinet openings, the required modification, and the installed VoltAire arrangement. Existing T4306RETURNSUPPLYModifyRETURNSUPPLYInstalled AT06RETURNSUPPLY Cabinet cooler replacement comparison Existing nVent cabinet openings, the required modification, and the installed VoltAire arrangement. Existing T4306RETURNSUPPLYModifyRETURNSUPPLYInstalled AT06RETURNSUPPLY
Existing nVent AC outline Existing nVent opening Adapter plate New VoltAire unit outline Stamped VoltAire opening Existing cabinet metal that may need removal — verify first
The red hatching shows cabinet metal outside the existing openings; verify it against your actual unit before cutting.
Step 1 of 4 Start with the existing T4306 cabinet pattern.
Selected installation step Cabinet drawing for the selected installation step. RETURNSUPPLY

The green adapter plate covers the existing pattern and contains the VoltAire stamped openings; use the supplied plate for final dimensions, holes, gaskets, and cut locations. The two manufacturer drawings are centered on each other for visual comparison only, because a shared mounting reference between the two units has not been verified. Verify every opening against your actual unit before any cutting or mounting. This comparison is a visual guide, not a cutting or drilling template. Openings can vary with voltage and production run — verify against your actual unit before any cutting or mounting, and follow the manufacturer's installation template.

Not sure? Talk to a fit specialist — (844) 925-5668.

T430616G100 Replacement — Common Questions

What replaces the McLean T430616G100?
The VoltAire AT06RMWXX — 6,000 BTU/hr at 115V, NEMA 4, UL/cUL Listed and built in Orlando, FL. Adapter fit in the same capacity class, or a true drop-in if upsized.
Is the T430616G100 discontinued?
Yes. nVent has discontinued the T430616G100 and no longer sells it at any price. The VoltAire AT06RMWXX is an in-production replacement at the same voltage and in the same capacity class, backed by a 12-month warranty.
Will the VoltAire AT06RMWXX fit my T430616G100 cutout?
Two ways: keep your capacity and mount with an adapter plate, or step up one size for a true drop-in. Both paths are priced on this page.
How much does a T430616G100 replacement cost?
Two options: the AT06RMWXX with adapter plate at $3,811, or the AT08RMWXX drop-in at $3,908. nVent no longer sells the T430616G100 at any price, so there is no OEM price to compare. Every quote locks pricing for 30 days with no obligation.
How fast can I get a replacement for my T430616G100?
Configured builds ship in 4–6 weeks from Orlando, FL. In-stock variants are sometimes on the shelf — call (844) 925-5668 and we'll find the fastest path for your spec.
Is the VoltAire AT06RMWXX an original McLean part?
No. VoltAire is an independent brand — an engineered replacement, not an OEM part. VoltAire Cooling is not affiliated with McLean, Hoffman, Pentair, or nVent. Units are UL/cUL Listed (UL 484) and manufactured in Orlando, Florida.

Why Switch to VoltAire?

Engineered Replacement

Matched voltage and NEMA 4 protection, with the capacity difference stated in plain numbers above — with a clear fit path for your enclosure: direct, adapter plate, or template-guided modification. Built to replace McLean, Hoffman, Pentair, and nVent.

Built & Tested in the USA

Manufactured in Orlando, FL with a 5-point pressure and leak test. In-stock models ship fast from East Coast (VA) and Rocky Mountain (ID) warehouses; built-to-order configurations ship in 4-6 weeks.

48% Below Published Online Pricing, on Average

No distribution markup. Transparent pricing. Volume discounts at 4+ and 7+ units. Integrator pricing available for panel shops.

Need Heat, Stainless, 230V, or Remote Monitoring?

The AT04 is available with electric heat, stainless steel NEMA 4X, 48VDC, and factory ethernet controllers with Lead-Lag, SNMP, and BACnet.

Configure Your AT04 / AT06 →
